- product name:LSK 05-10
- category:thyssenkrupp
- Brand:thyssenkrupp
- manufacturer:thyssenkrupp
- use:激光焊接
- major client:
- description
- features
- parameter
- Case
One tool, many capabilities
How to achieve vehicle weight reduction? How to improve the body strength? How to optimize the passive safety of vehicles? ——Laser welding provides an effective solution.
ThyssenKrupp has designed a compact and flexible body laser welding system-LSK05 series for well-known car companies such as German Volkswagen and Audi, which can not only meet the welding of aluminum alloy plates, but also meet the requirements of galvanized sheets and super Welding of strong steel body sheet metal.

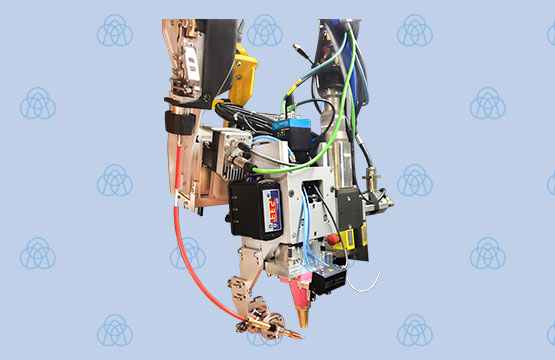

LSK05-10 is a flexible and intelligent laser welding tool for aluminum alloy battery packs of electric vehicles with the most comprehensive functions so far. It combines all the features of products before LSK05 and incorporates innovative technologies to make it intelligent, efficient and stable. Laser processing tools have been successfully applied to the aluminum alloy battery production line of BMW, Mercedes-Benz and other first-class OEMs.
? 最大激光功率≤8kw（可定制最大20kw）
? 焊接速度快≤200mm/s
? 高精度Lessmuller光學焊縫跟蹤系統，自帶焊縫在線質量監測功能
? 高效的1D光學鏡組，有效提高焊接強度，并適用于鋁合金材料
? 特有的掃描填絲工藝，有效提高鋁合金厚板焊接的強度及質量
? 采用螺旋噴嘴，有效延長護鏡使用壽命及減少保護氣使用量
? 聚焦鏡下方安裝有兩塊護鏡，對聚焦鏡雙重保護
? 噴嘴上方設有便捷式護鏡抽屜模塊，并可實時監控護鏡污染狀態
? 采用總線通訊控制方式，可支持各種不同總線形式
? 可選配多種形式的夾指系統，夾緊力≤700N（可在線無級設定）
? 可全面提供設備的備件、維修、技術支持及培訓等一站式售后服務
? 可為客戶提供產品配置定制化服務
