One tool, many capabilities

How to achieve vehicle weight reduction? How to improve the body strength? How to optimize the passive safety of vehicles? ——Laser welding provides an effective solution.

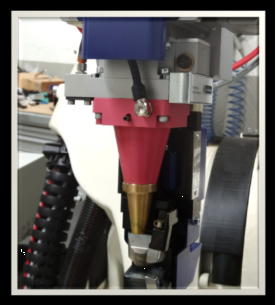

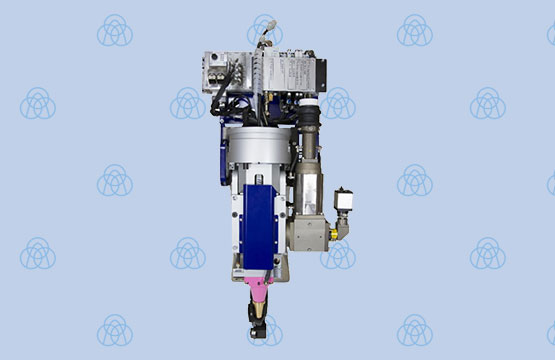

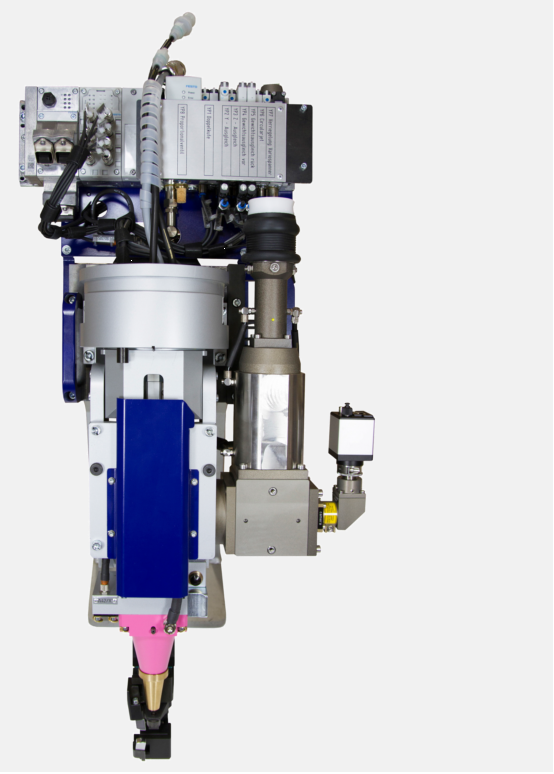

ThyssenKrupp has designed a compact and flexible body laser welding system-LSK05 series for well-known car companies such as German Volkswagen and Audi, which can not only meet the welding of aluminum alloy plates, but also meet the requirements of galvanized sheets and super Welding of strong steel body sheet metal.

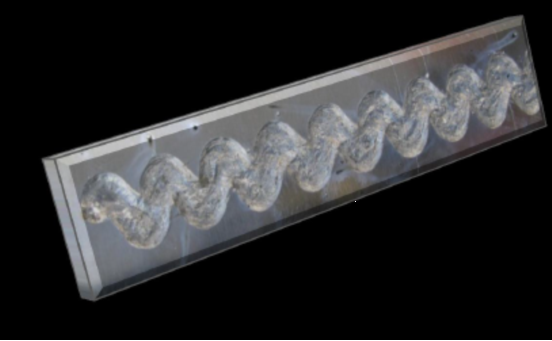

LSK05-08 is a brand-new upgraded product based on the function of LSK05-01. Through the use of 1D scanning mirror group, high-frequency stirring of the laser focus to the weld pool can be achieved, thereby effectively improving the welding of high-strength steel and galvanized sheet Strength and quality are also conducive to the formation of "small hole effect" on aluminum alloy welding, and are conducive to the improvement of quality defects such as aluminum alloy welding cracks and thermal deformation.

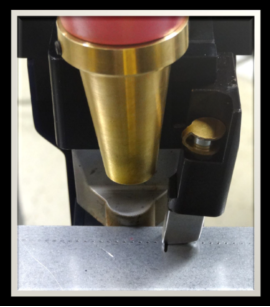

LSK05-08 adopts a flexible and modular design. According to the optional configuration, it can realize a variety of different laser welding process forms such as single-side pressing, double-side clamping and one-dimensional scanning welding, providing customers with a variety of functions. Flexible products.
